Size
|
|
595mm
|
603mm
|
1195mm
|
1212mm
|
|
Length
|
√
|
√
|
|
|
|
Width
|
√
|
√
|
√
|
√
|
|
Thickness
|
7/7.5/8.5/9/9.5/12
|
7/7.5/8.5/9/9.5/12
|
7/7.5/8.5/9/9.5/12
|
7/7.5/8.5/9/9.5/12
|

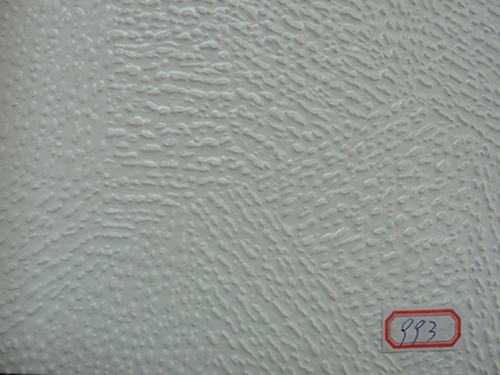

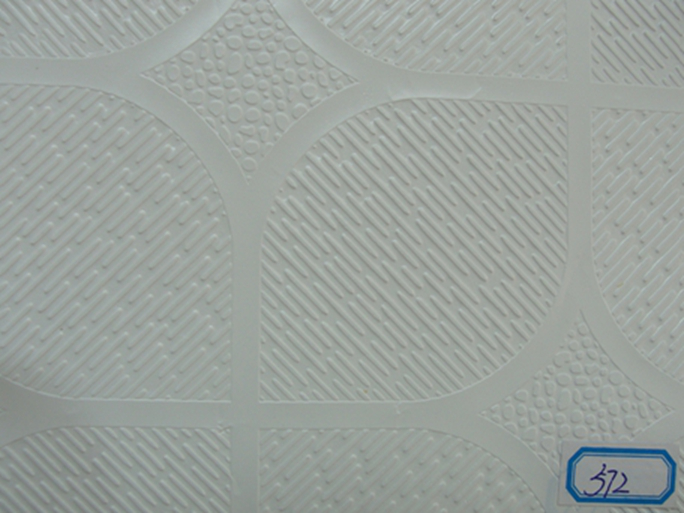

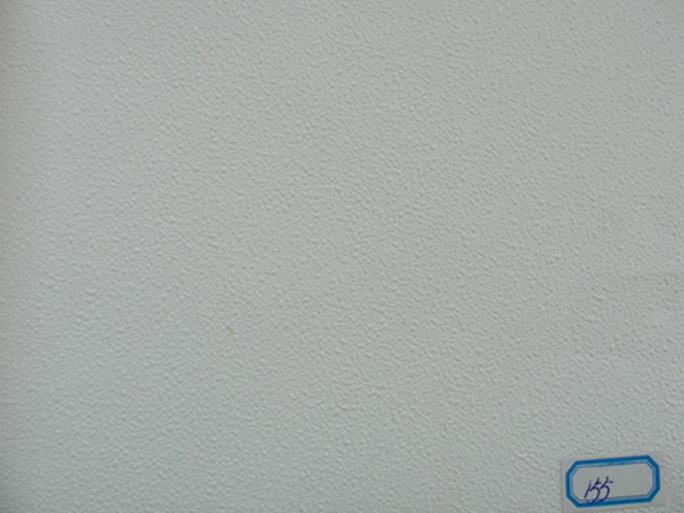

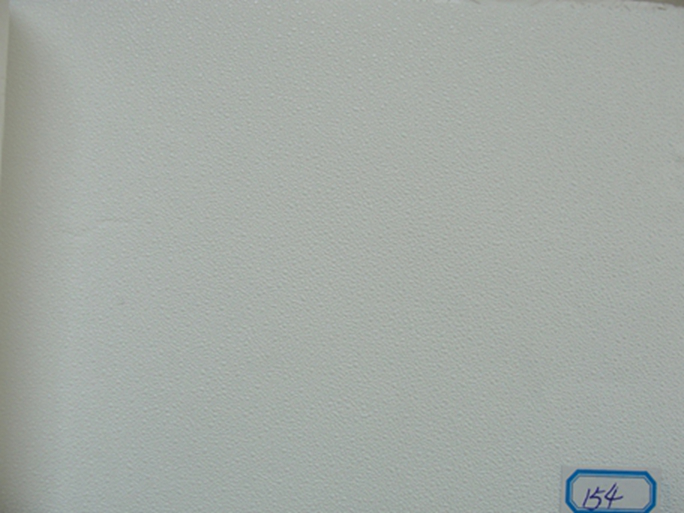

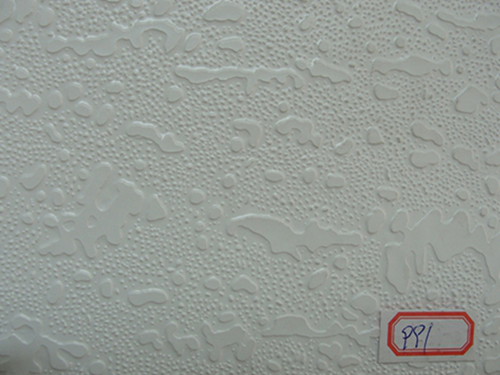

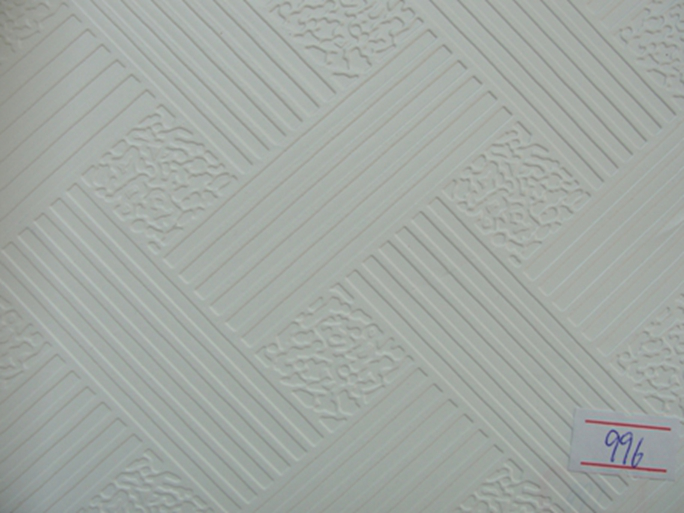

Color
Specification
|
MATERIAL
|

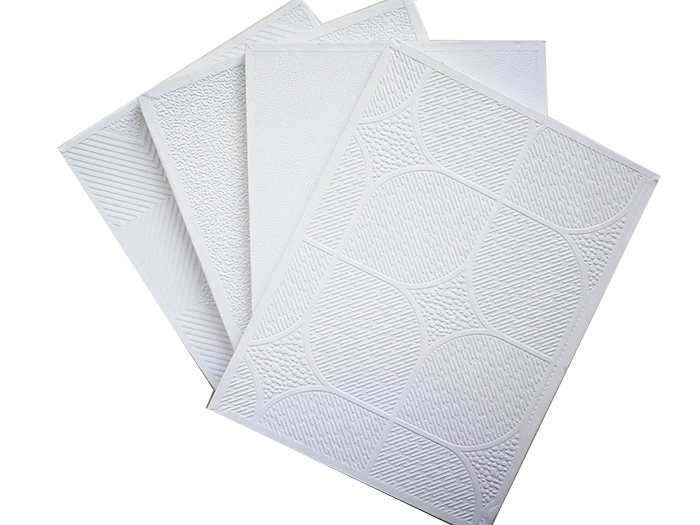

Paper Gypsum Board, PVC Film Aluminium Film
|
|
FACE & BACK
|
Face: PVC Film
BACK:Aluminium Film
|
|
COLOR
|
White,Color and others to order
|
|
RIGHT ANGLE DEVIATION
|
≦0.05 JC/T799-2007 GB6566-2001
|
|
MASS PER UNIT kg/㎡
|
AVG =6.3 MAX VALUE = 6.5 JC/T799-2007 GB6566-2001
|
|
MOISTURE CONTENT
|
AVG =0.42 MAX VALUE = 0.46
|
|
BREAKING STRENGTH
|
AVG =218 MAX VALUE = 185
|
|
No sagging,wrapping or delaminating
|
|
MOISTURE ARTE
|
≤1%
|
|
RADIONUCLIDE LIMITED
|
None
|
|
CERTIFICATES
|
SGS, ISO9001:2008
|
LOADING CAPACITY (loading port:Qingdao)
|
SIZE(MM)
|
THICKNESS
|
PACKING
|
LOADING QUANTITY(20GP)
|
|
595x595mm/600x600mm
|
7 mm
|
8PCS/CTN
|
1450CTNS 4176SQM
|
|
595x595mm/600x600mm
|
7.5mm
|
8PCS/CTN
|
1353CTNS 3897SQM
|
|
595x595mm/600x600mm
|
8mm
|
8PCS/CTN
|
1268CTNS 3830.4SQM
|
|
595x595mm/600x600mm
|
9mm
|
8PCS/CTN
|
1127CTNS 3245SQM
|
|
595x595mm/600x600mm
|
9.5mm
|
8PCS/CTN
|
1068CTNS 3075SQM
|
|
595x595mm/600x600mm
|
12mm
|
6PCS/CTN
|
1127CTNS 2434SQM
|

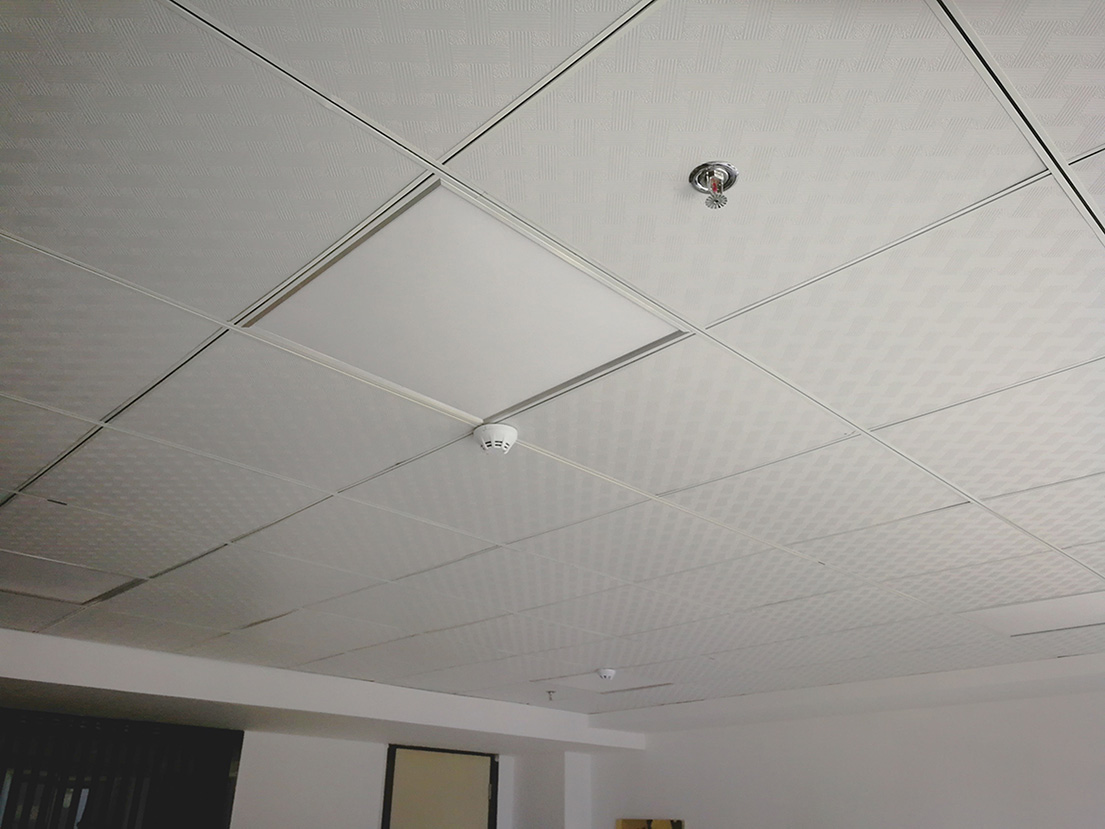

Applicable Place
PVC Gypsum ceiling have fashion design,Waterproof, Moistureproof, Easy install, Chemical performance stability and other properties.It widely use in meeting room,House,office,supermarket,hotel and factory etc.
