Size
|
|
MM
|
MM
|
MM
|
MM
|
|
Main Tee
|
24*32*3600*0.3/0.35
|
24*38*3600*0.3/0.35
|
24*38*3600*0.3/0.35
|
16*28*3000*1.0
|
|
Cross Tee
|
24*26*1200*0.3/0.35
|
24*26*1200*0.3/0.35
|
24*32*1200*0.3/0.35
|
|
|
Cross Tee
|
24*26*600*0.3/0.35
|
24*26*600*0.3/0.35
|
24*32*600*0.3/0.35
|
16*20*600*0.8/0.9
|
|

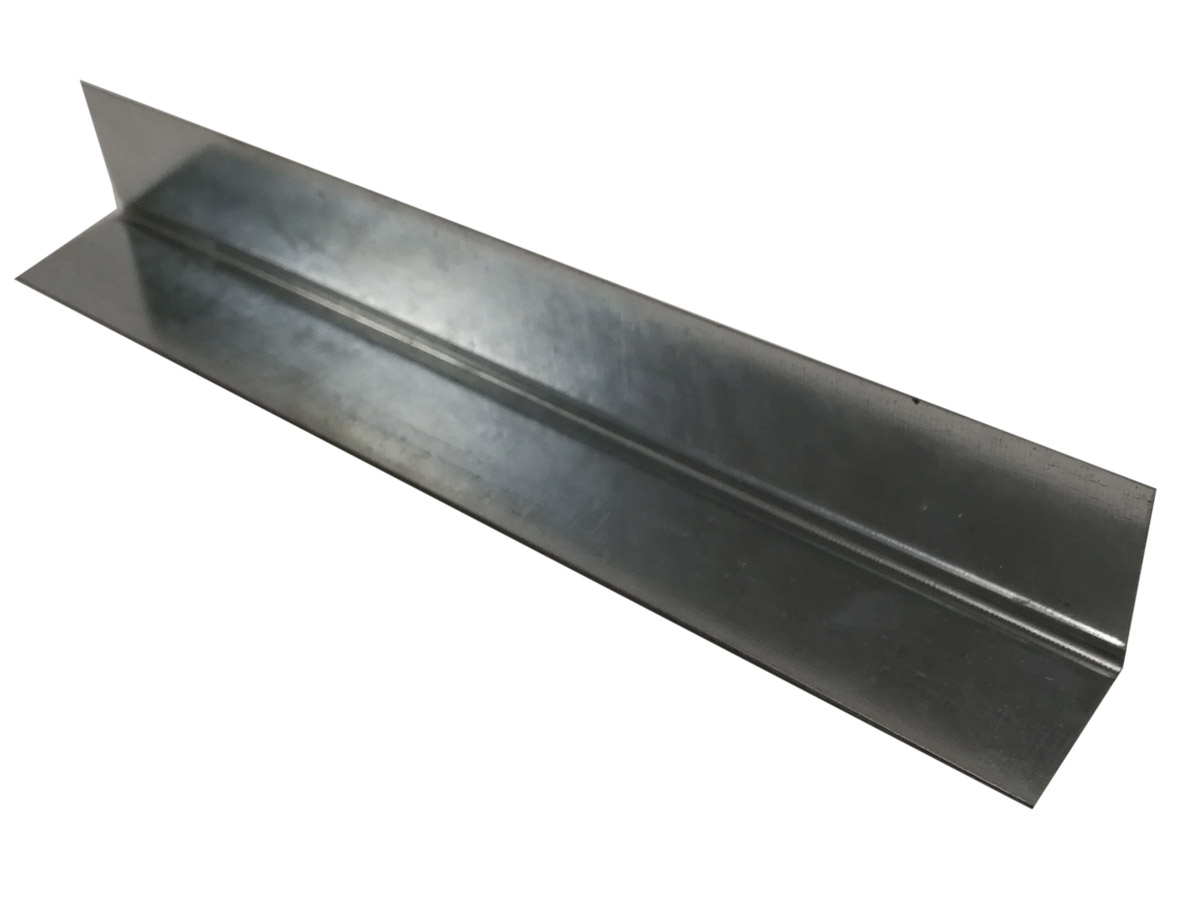

Wall Angle
|
22*22*3000*0.4
|
22*22*3000*0.4
|
22*22*3000*0.4
|
12*18*3000*0.8/0.9
|
Specification
|
TEST TYPE
|
CONTROL CRITERION
|
TEST RESULT
|
STABDARD SPECS
(FIRST GRADE)
|
AVERAGE VALUE
|
TEST VALUE
|
|
LENGTH DEVIATION MM
|
-5~+5
|
0
|
OK
|
|
THICKNESSDEVIATION MM
|
-0.07~+0.07
|
-0.02
|
OK
|
|
SIZE DEVIATION MM
|
≤0.5
|
0.2
|
OK
|
|
SIDE STRAIGHTNESSMM/M
|
≤1.5
|
0.4
|
OK
|

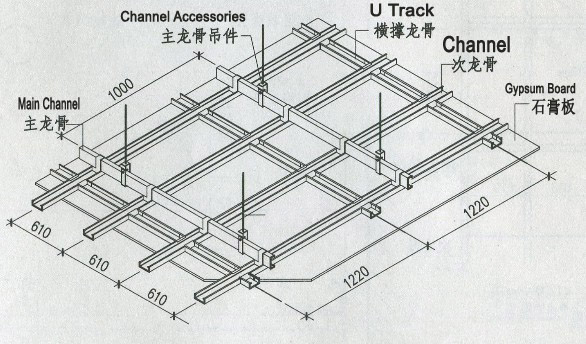

DESIGN
LOADING CAPACITY (loading port:Qingdao)
|
SIZE(MM)
|
PCS/CTN
|
PCS / 20GP
|
|
24*32*3600*0.3mm
|
27
|
7200
|
|
24*26*1200*0.3mm
|
75
|
43200
|
|
24*26*600*0.3mm
|
75
|
43200
|
|
22*22*3000*0.4mm
|
50
|
6400
|
Applicable Place
Keel integral plane effect is good, line is concise, beautiful is generous. It is safe, strong and beautiful, suitable for all kinds of glass fiber ceiling, gypsum ceiling, mineral wool ceiling, aluminum block ceiling, calcium silicate board and so on.
